Aluminium foil coated mylar for flexible duct

FOB Reference Price:Get Latest Price
US $2,500-4,200 / Tons | 0.1 Ton/Tons Customer requirements (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Tianhong
Model Number:
AL PET
Type:
Customer requirements
Material:
Composite Polymer
Application:
High Temperature
Rated Voltage:
Customer requirements
Tensile Strength:
≥50 Mpa
Thickness:
20μ-150μ
Width:
5mm-1000mm
ID:
53mm±0.5mm/76mm±0.5mm
OD:
250mm-650mm
Color:
silver/blue/golden
Supply Ability
Supply Ability:
200 Ton/Tons per Month Customer requirements
Packaging & Delivery
Packaging Details
1.Inner-plastic bag,Outside-carton,Then put on a plywood pallet
2.Inner-plastic bag,Outside plywood wooden box
Port
Shanghai or Ningbo
Lead Time :
Within 15 days after deposit

1.Application

1.For insulation materials

2.Raw material for flexible duct manufacturing

3.For oil and gas pipe

4.Used in ventilation duct

5.We are manufacturer

6.Can supply SGS,Certificate of original,MSDS,Test report,ect;



2.Specification

Name

Single side aluminium foil coated mylar

Thickness

20u-150u

Width

5mm-1000mm

Inner diameter

38mm(1.5in) or 53.5mm(2.1in) or 76mm(3.0in)

Outer diameter

350mm-650mm

Color

Silver,Blue,Golden

Packaging

1.Inner-plastic bag,Outside-carton,Then put on a plywood pallet

2.Inner-plastic bag,Outside plywood wooden box

Note

1.Have 7+12,7+15,7+20,ect;

2.The same thickness,different width have the same price.



Name

Double side aluminium foil coated mylar

Thickness

30u-50u

Width

5mm-1000mm

Inner diameter

38mm(1.5in) or 53.5mm(2.1in) or 76mm(3.0in)

Outer diameter

350mm-650mm

Color

Silver,Blue,Golden

Packaging

1.Inner-plastic bag,Outside-carton,Then put on a plywood pallet

2.Inner-plastic bag,Outside plywood wooden box

Note

1.Have 7+12,7+15,7+20,ect;

2.The same thickness,different width have the same price.



Name:AL+PET







Structure

Thickness(mic)

Weight(g/m2)

Yield(m2/kg)

AL7+ PET12

21mic

36



AL7 +PET15

24mic

39



AL9 +PET19

30mic

54

19

AL9 +PET23

34mic

60

17

AL12 +PET12

26mic

52

19

AL12 +PET15

29mic

56

18

AL12 +PET19

33mic

32

16

AL12 +PET23

37mic

67

15

AL12 +PET36

50mic

87

12





3.Test report and test machine



No.NameWidth(mm)Thickness
(mm)
Tension
(N)
Tensile strength
(MPa)
Elongation at break
(%)
1Aluminium PET foil45.0000.021127.58135.01053.546

   test-machines

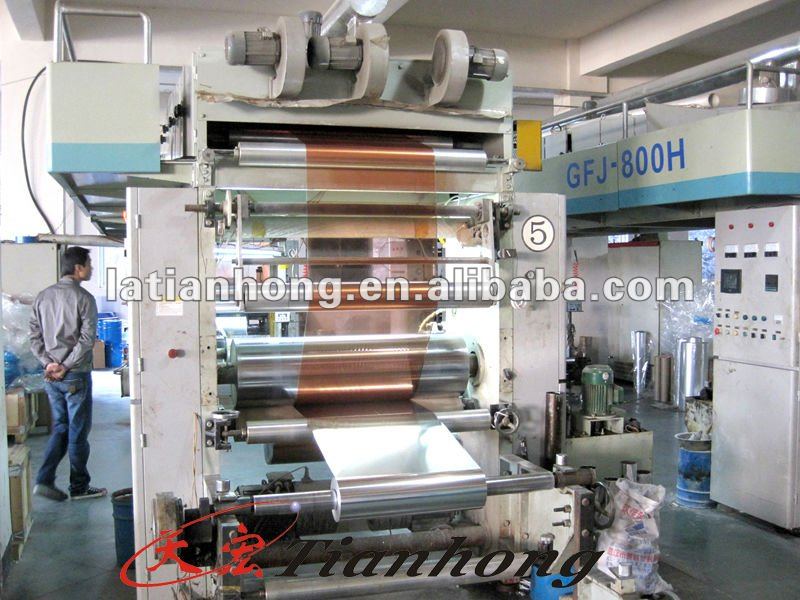

4.Production line: Lamination & Cutting

1105



1105 (2)

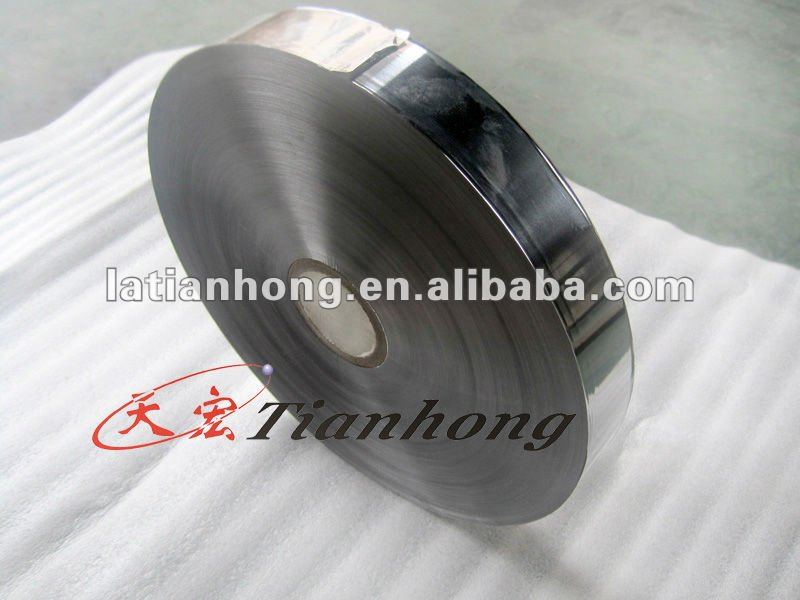

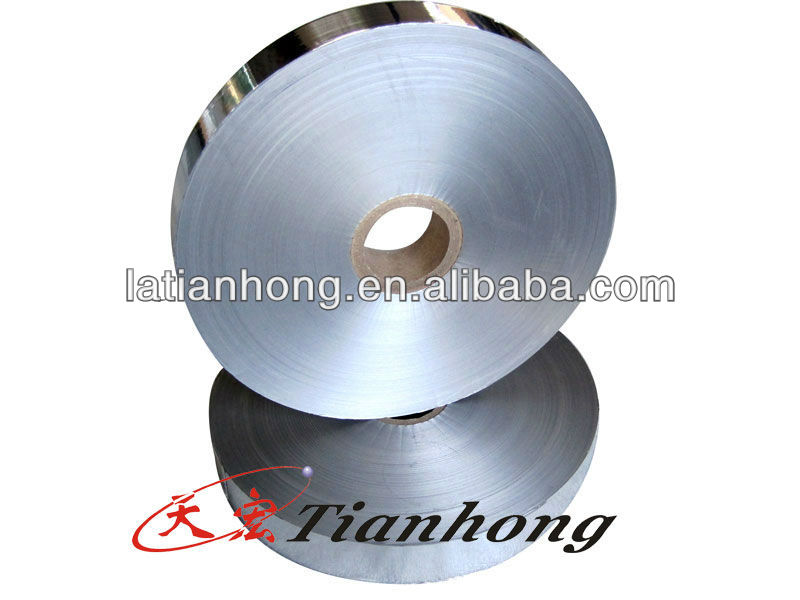

5.Product pictures

1119 (8)

Aluminium foil (4)



Each coil with plastic packaging

IMG_6724



IMG_6717

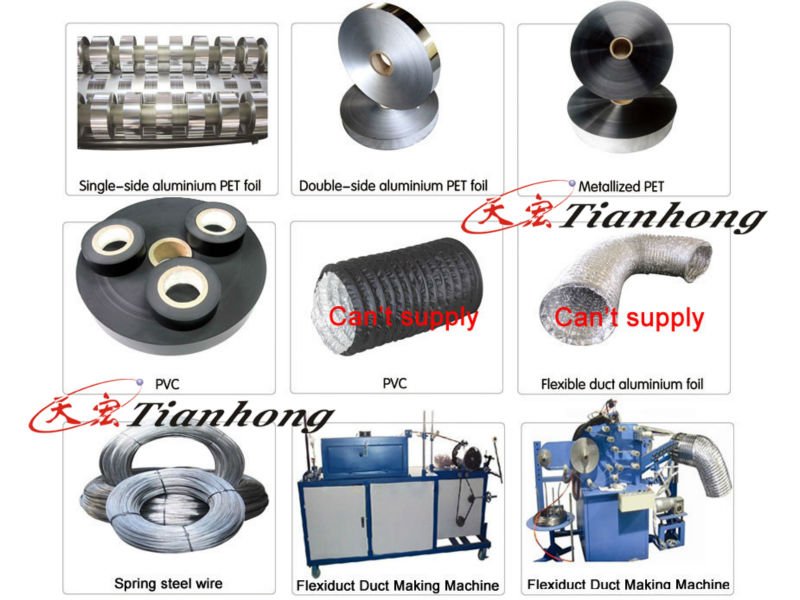

We can supply other materials for Flexible ducts

ying







6.Packaging photos

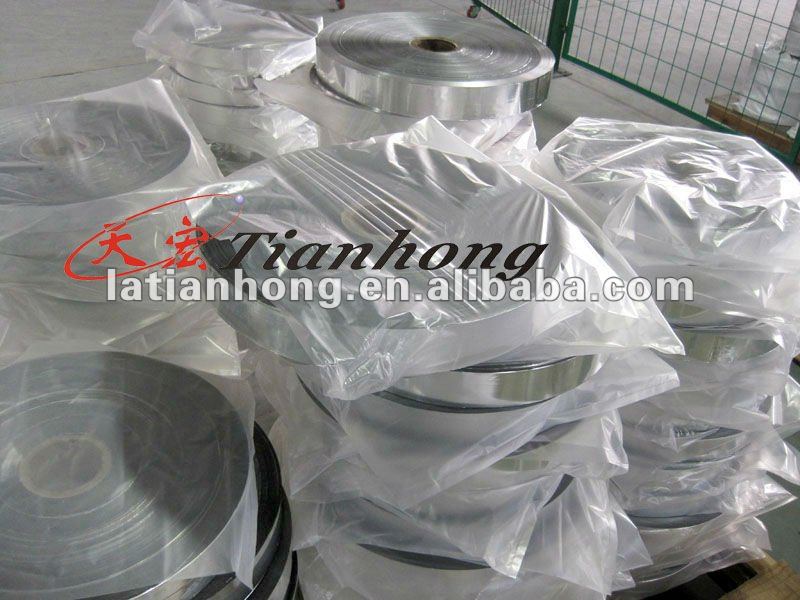

a.Inner-plastic bag,Outside-carton,Then put on a plywood pallet

Pallet (3)



b.Inner-plastic bag,Outside plywood wooden box

Wooden box (1)





7.Warehouse1105





8.Application to Flexible Ducts and Cable

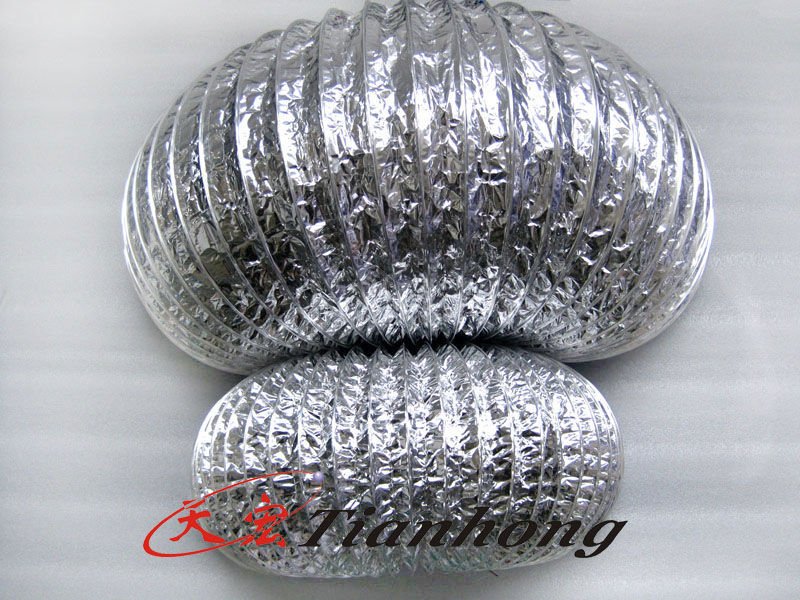

For flexible duct

 (8)



For cable

-(13)





9.Certificate:We have ISO,Supply SGS,Certificate of original,MSDS,Test report,ect

ISO-SGS



10.Sample: We are manufacturer,We supply free sample,But please pay express fee.



11.Contact:Please feel free to contact with me.

Mobile:86-15168349992
